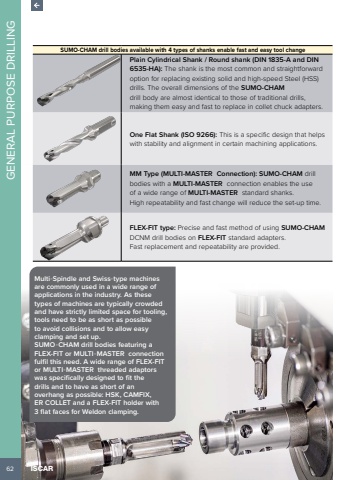

62GENERAL PURPOSE DRILLINGISCARSUMO-CHAM drill bodies available with 4 types of shanks enable fast and easy tool changePlain Cylindrical Shank / Round shank (DIN 1835-A and DIN 6535-HA): The shank is the most common and straightforward option for replacing existing solid and high-speed Steel (HSS) drills. The overall dimensions of the SUMO-CHAMdrill body are almost identical to those of traditional drills, making them easy and fast to replace in collet chuck adapters.One Flat Shank (ISO 9266): This is a specific design that helps with stability and alignment in certain machining applications.MM Type (MULTI-MASTER Connection): SUMO-CHAM drill bodies with a MULTI-MASTER connection enables the use of a wide range of MULTI-MASTER standard shanks. High repeatability and fast change will reduce the set-up time.FLEX-FIT type: Precise and fast method of using SUMO-CHAMDCNM drill bodies on FLEX-FIT standard adapters. Fast replacement and repeatability are provided.Multi-Spindle and Swiss-type machines are commonly used in a wide range of applications in the industry. As these types of machines are typically crowded and have strictly limited space for tooling, tools need to be as short as possible to avoid collisions and to allow easy clamping and set up. SUMO-CHAM drill bodies featuring a FLEX-FIT or MULTI-MASTER connection fulfil this need. A wide range of FLEX-FIT or MULTI-MASTER threaded adaptors was specifically designed to fit the drills and to have as short of an overhang as possible: HSK, CAMFIX, ER COLLET and a FLEX-FIT holder with 3 flat faces for Weldon clamping.
