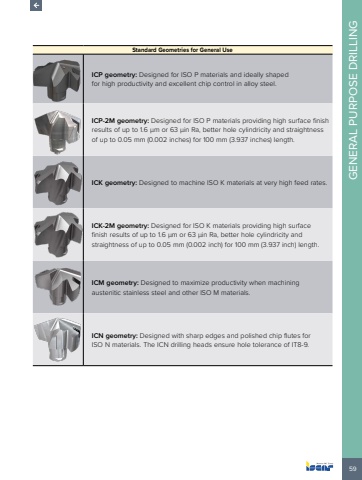

59GENERAL PURPOSE DRILLINGStandard Geometries for General UseICP geometry: Designed for ISO P materials and ideally shaped for high productivity and excellent chip control in alloy steel.ICP-2M geometry: Designed for ISO P materials providing high surface finish results of up to 1.6 %u00b5m or 63 %u00b5in Ra, better hole cylindricity and straightness of up to 0.05 mm (0.002 inches) for 100 mm (3.937 inches) length.ICK geometry: Designed to machine ISO K materials at very high feed rates. ICK-2M geometry: Designed for ISO K materials providing high surface finish results of up to 1.6 %u00b5m or 63 %u00b5in Ra, better hole cylindricity and straightness of up to 0.05 mm (0.002 inch) for 100 mm (3.937 inch) length. ICM geometry: Designed to maximize productivity when machining austenitic stainless steel and other ISO M materials. ICN geometry: Designed with sharp edges and polished chip flutes for ISO N materials. The ICN drilling heads ensure hole tolerance of IT8-9.
