Page 53 - Demo

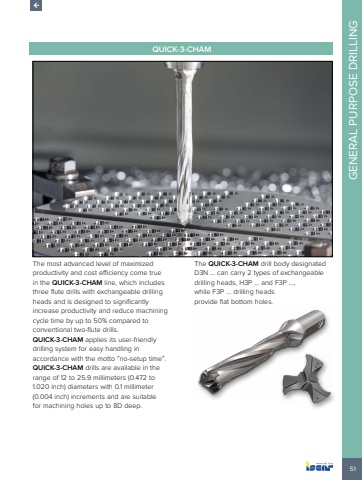

51GENERAL PURPOSE DRILLINGQUICK-3-CHAMThe most advanced level of maximized productivity and cost efficiency come true in the QUICK-3-CHAM line, which includes three flute drills with exchangeable drilling heads and is designed to significantly increase productivity and reduce machining cycle time by up to 50% compared to conventional two-flute drills. QUICK-3-CHAM applies its user-friendly drilling system for easy handling in accordance with the motto %u201cno-setup time%u201d. QUICK-3-CHAM drills are available in the range of 12 to 25.9 millimeters (0.472 to 1.020 inch) diameters with 0.1 millimeter (0.004 inch) increments and are suitable for machining holes up to 8D deep.The QUICK-3-CHAM drill body designated D3N %u2026 can carry 2 types of exchangeable drilling heads, H3P %u2026 and F3P %u2026, while F3P %u2026 drilling heads provide flat bottom holes.
